1000V DC Combiner Box 1 In 1 Out Isolator Type for PV Systems

2026-06-21 0 Leave me a message

Parameter	1000V DC Combiner Box 1 In 1 Out Isolator type	Traditional Solution
Rated Voltage	Customizable	Standard
Protection Level	High	Medium
Installation	Easy	Complex

The 1000V DC Combiner Box 1 In 1 Out Isolator type is a compact protective unit designed for photovoltaic (PV) systems where a single string must be isolated and protected before feeding into an inverter. This article covers its function, selection criteria, and applicable standards. For a full range, visit the combiner box category on Soutyaele.

What is a 1000V DC Combiner Box 1 In 1 Out Isolator Type?
Why Choose a 1 In 1 Out Isolator for PV Systems?
How to Select a 1000V DC Combiner Box for Your Project?
Which Standards Govern DC Combiner Box Performance?
Asked Questions
Conclusion

Outline

Product definition and typical application
Benefits of isolator-type combiner boxes
Selection parameters: voltage, current, protection class
Relevant industry standards
Common buyer concerns

What Is a 1000V DC Combiner Box 1 In 1 Out Isolator Type?

A 1000V DC Combiner Box 1 In 1 Out Isolator type is a single-string enclosure that combines one input (from a PV string) and one output (to an inverter or combiner). The built-in isolator switch allows technicians to manually disconnect the string for maintenance or emergency shutdown. Rated for 1000V DC, it is suitable for high-voltage commercial and utility-scale solar arrays.

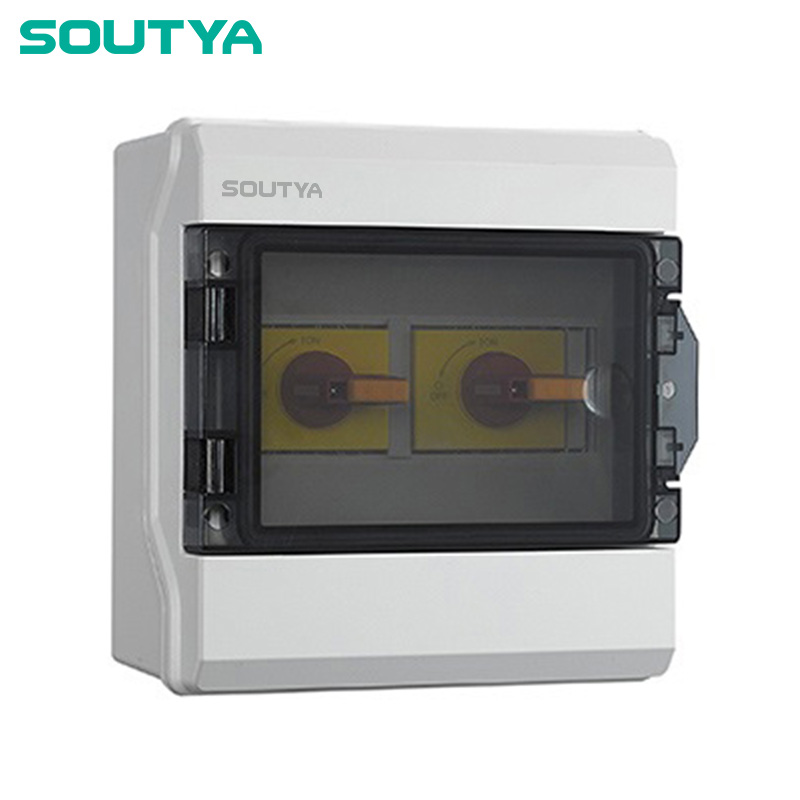

Why Choose a 1 In 1 Out Isolator for PV Systems?

The isolator-type design provides a clear physical break in the circuit, improving safety during installation and service. Unlike fused combiners, the isolator switch does not require replacement after a fault. It also simplifies troubleshooting by enabling quick isolation of a single string without affecting other strings.

For systems with limited space, the compact 1-in-1-out form factor reduces enclosure size and material cost. Many installers prefer this configuration for single-string inverters or as a string-level disconnect in larger arrays.

How to Select a 1000V DC Combiner Box for Your Project?

Consider the following parameters:

Voltage rating: Ensure the box is rated for 1000V DC or higher. The 1000V DC Combiner Box meets common system voltages up to 1000V.
Current rating: Match the maximum short-circuit current of the PV string. Typical ratings range from 15A to 30A per input.
Isolator switch rating: The switch must be DC-rated for both load break and fault interruption capability.
Enclosure protection: Choose IP65 or higher for outdoor installation. UV-resistant materials extend service life.
Surge protection: Some models include integrated SPDs (Type 2) for additional protection per IEC 61643-11:2011.

Note: Always verify compliance with local electrical codes and the inverter manufacturer’s string sizing requirements.

Which Standards Govern DC Combiner Box Performance?

Two key standards define the design and testing of DC combiner boxes:

IEC 62548:2016 – Photovoltaic (PV) arrays – Design requirements. This standard specifies protection, isolation, and wiring requirements for PV arrays, including combiner boxes.
IEC 61643-11:2011 – Low-voltage surge protective devices – Part 11: SPDs connected to low-voltage power systems. Combiner boxes with integrated SPDs must meet this standard.
UL 1699B:2018 – Photovoltaic (PV) DC Arc-Fault Circuit Protection. Although not mandatory everywhere, it is recommended for systems requiring arc-fault detection.

Selecting a combiner box from a manufacturer that tests to these standards ensures reliability and compliance.

Asked Questions

Q1: Can a 1 In 1 Out isolator box be used for multiple strings?

No, this design is for a single string. For multiple strings, use a multi-input combiner box with a common output.

Q2: What is the typical lifespan of the isolator switch?

Mechanical switches rated for DC can endure thousands of operations. Under normal use, the switch lasts the life of the system (20+ years).

Q3: Do I need surge protection in a combiner box?

It is recommended if the PV array is exposed to lightning risk. Many combiner box models offer optional SPDs.

Q4: Is the 1000V DC rating safe for 1500V systems?

No. A 1000V box should not be used on 1500V systems. Check the system’s maximum voltage and select a box with equal or higher rating.

Q5: What certifications should I look for?

Look for CE, TUV, or UL certification indicating compliance with IEC or UL standards.

For a reliable 1000V DC Combiner Box 1 In 1 Out Isolator type, consider the models available at Soutyaele. This isolator-type combiner box is built for safety and durability in high-voltage PV installations. View product details for specifications and ordering information.
