Why Is an AC 230V Surge Protective Device Essential for Protecting Modern Electrical Systems

In today's technology-driven world, electrical systems are increasingly vulnerable to voltage spikes caused by lightning strikes, switching operations, power grid disturbances, and industrial equipment. As a trusted manufacturer of surge protection solutions, Soutya provides reliable AC 230V Surge Protective Device products designed to safeguard sensitive electrical equipment, reduce downtime, and improve overall system reliability. Whether used in residential buildings, commercial facilities, or industrial installations, choosing the right surge protection device is a critical investment for long-term electrical safety.

Table of Contents

What Is an AC 230V Surge Protective Device?

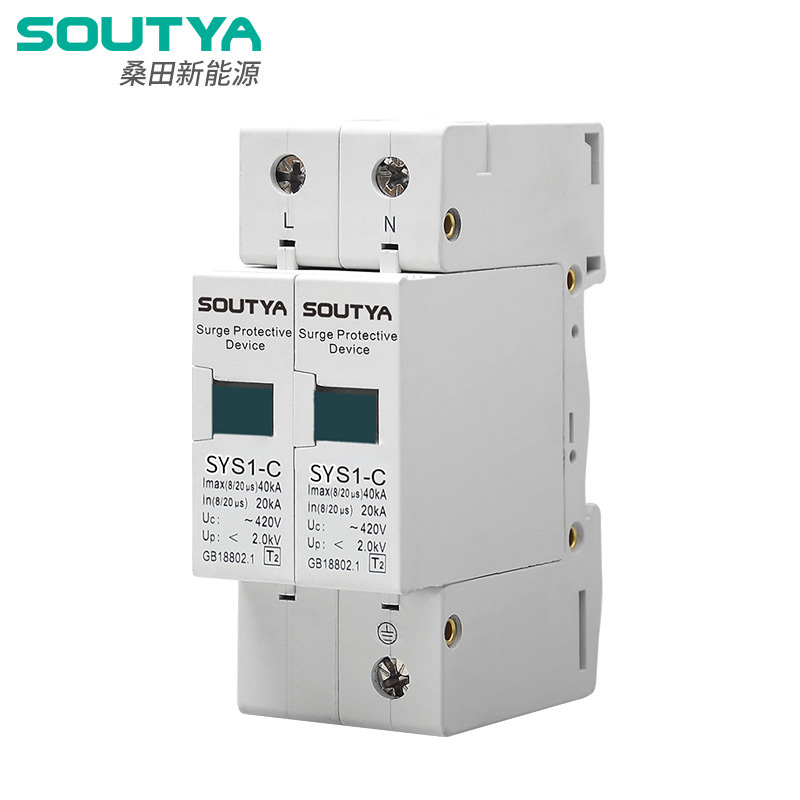

An AC 230V Surge Protective Device (SPD) is an electrical protection component designed to limit transient overvoltages and divert surge currents safely to ground. It acts as a protective barrier between the power source and connected equipment, preventing excessive voltage from damaging sensitive electronics.

These devices are commonly installed in power distribution panels, electrical cabinets, control systems, communication networks, renewable energy systems, and building infrastructure.

• Protects against lightning-induced surges
• Limits switching transient overvoltages
• Extends equipment lifespan
• Reduces maintenance costs
• Enhances system reliability

Why Is Surge Protection Important?

Modern electrical systems contain increasingly sophisticated electronic components. Even a brief voltage spike lasting microseconds can damage microprocessors, sensors, communication modules, PLC controllers, and consumer electronics.

Common causes of electrical surges include:

• Lightning strikes near utility lines
• Power grid switching operations
• Transformer switching events
• Large motor startup and shutdown
• Industrial machinery operation
• Faults in electrical distribution systems

Without proper surge protection, organizations may experience:

• Equipment failure
• Production downtime
• Data loss
• Unexpected repair expenses
• Reduced equipment lifespan

How Does an AC 230V Surge Protective Device Work?

Under normal operating conditions, the SPD remains inactive and allows standard electrical current to flow uninterrupted.

When a transient overvoltage occurs:

1. The SPD detects the voltage spike.
2. Its internal protective elements rapidly change impedance.
3. The surge current is diverted to the grounding system.
4. The protected equipment receives only a safe voltage level.
5. The SPD automatically returns to standby mode.

This entire process occurs within nanoseconds, ensuring effective protection against harmful voltage transients.

Main Components of Surge Protection Devices

High-quality AC 230V Surge Protective Devices typically include several advanced protective elements:

Where Are AC 230V Surge Protective Devices Used?

Surge protection devices are widely utilized across multiple industries and infrastructures.

Residential Buildings

• Smart home systems
• Computers and entertainment equipment
• HVAC systems
• Home appliances

Commercial Buildings

• Office automation systems
• Security systems
• Elevators
• Data centers

Industrial Facilities

• PLC control systems
• Production equipment
• Motor control centers
• Industrial automation systems

Renewable Energy Projects

• Solar photovoltaic systems
• Wind power installations
• Energy storage systems

Key Advantages of Installing Surge Protection Devices

Installing a properly selected AC 230V Surge Protective Device delivers numerous operational and financial benefits.

• Enhanced electrical safety
• Protection of sensitive electronics
• Reduced maintenance expenses
• Lower risk of unexpected downtime
• Extended equipment service life
• Improved power system reliability
• Compliance with electrical safety standards
• Reduced insurance and replacement costs

How to Choose the Right AC 230V Surge Protective Device?

Selecting the correct surge protection device requires evaluating several technical parameters.

1. Maximum Continuous Operating Voltage (Uc)

Ensure the SPD is compatible with the nominal voltage of your electrical system.

2. Nominal Discharge Current (In)

Higher discharge current ratings generally indicate greater surge-handling capability.

3. Maximum Discharge Current (Imax)

This specifies the maximum surge current the device can safely withstand.

4. Voltage Protection Level (Up)

Lower protection levels generally provide better protection for sensitive equipment.

5. Installation Environment

Consider environmental factors such as humidity, temperature, pollution levels, and installation location.

Technical Comparison Table

Installation Best Practices

Correct installation is essential for maximizing surge protection performance.

• Install the SPD as close as possible to the protected equipment.
• Use the shortest possible grounding conductors.
• Ensure proper grounding system quality.
• Follow local electrical codes and standards.
• Use coordinated protection stages when necessary.
• Regularly verify connection tightness.

Professional installation can significantly improve overall surge protection effectiveness.

Maintenance and Inspection Tips

Although surge protective devices require minimal maintenance, routine inspections are recommended.

• Check status indicators regularly.
• Inspect wiring connections.
• Verify grounding continuity.
• Replace damaged or expired modules.
• Record major surge events.
• Conduct periodic electrical system audits.

Preventive maintenance helps ensure continuous protection throughout the device's service life.

Frequently Asked Questions

1. What is the primary purpose of an AC 230V Surge Protective Device?

Its primary purpose is to protect electrical and electronic equipment from transient overvoltages caused by lightning strikes, switching operations, and other surge events.

2. Can a surge protective device prevent all electrical damage?

While no device can guarantee complete protection against every scenario, a properly selected and installed SPD significantly reduces surge-related risks.

3. How often should surge protection devices be replaced?

Replacement intervals depend on surge exposure levels, environmental conditions, and manufacturer recommendations. Regular inspections help determine replacement timing.

4. Are AC 230V Surge Protective Devices suitable for industrial applications?

Yes. Industrial-grade SPDs are specifically designed to handle higher surge currents and demanding operating environments.

5. Why is grounding important for surge protection?

A reliable grounding system provides a safe path for surge currents, enabling the SPD to function effectively.

Conclusion

As electrical systems become increasingly sophisticated, surge protection has evolved from an optional safeguard to an essential component of reliable power infrastructure. A high-quality AC 230V Surge Protective Device can significantly reduce equipment damage, minimize downtime, and improve operational continuity across residential, commercial, and industrial environments.

If you are looking for dependable surge protection solutions backed by professional manufacturing expertise, Soutya offers a comprehensive range of products designed to meet modern electrical protection requirements. To learn more about the most suitable surge protection solution for your project, contact us today. Our technical team is ready to help you select the ideal AC 230V Surge Protective Device and provide customized recommendations for your specific application.
