690V AC Combiner Box 4 In 1 Out

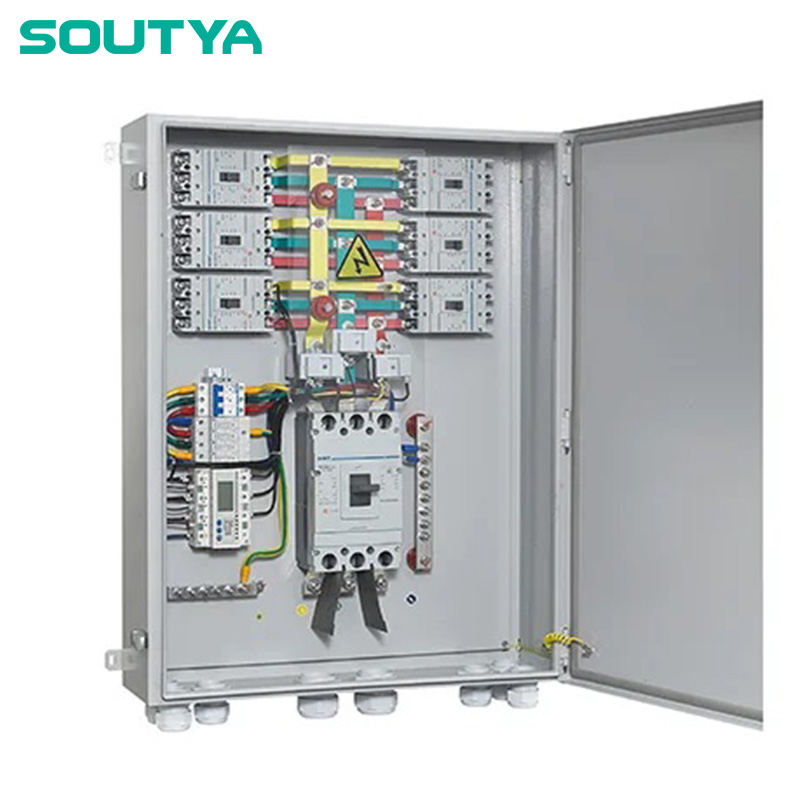

The 690V AC Combiner Box 4 In 1 Out, supplied by China manufacturer Zhejiang Soutya New Energy LLC, is a 690V three-phase inverter-combiner unit constructed with a powder-coated, UV-resistant steel enclosure and IP65 / IK10-rated sealing for durable outdoor performance. The enclosure houses four 4-pole AC molded case circuit breakers (160-250A ) that deliver individual over-current and short-circuit protection to each inverter input, while a single 4-pole AC molded case circuit breaker (630-1000A ) provides visible-break isolation and overload protection for the combined output. Factory-wired L1, L2, L3, N and PE copper busbars ensure dependable current-carrying capacity and equipotential bonding, and a built-in Type 2 4 pole 690V AC Surge Protective Device guards against lightning-induced surges. Engineered for up to four solar string inverters (4*110-138kW), it provides essential AC combining, surge immunity and maintenance safety .

Application scenarios

1. Utility Scale Ground Mount Blocks (320–550 kW)

The four 160–250A MCCB inputs accept up to four 138 kW string inverters; the 1000 A output MCCB feeds a MV transformer station, reducing cable runs and trenching costs across large solar parks.

2. Central-Inverter Skids

Mounted on the same frame as the inverters, the box acts as a “local AC hub” — paralleling four inverter outputs before a single large cable run to the ring main, simplifying skid wiring and maintenance access.

3. Commercial Rooftop Arrays > 300 kW

IP65 steel housing and IK10 impact rating allow rooftop installation where space is limited; the 690 V rated components raise string voltage, cutting DC cable losses and keeping the AC side compact.

4. Agricultultural Greenhouses & Barn Clusters

The Type-2 690 V SPD protects ventilation, irrigation and milking equipment from lightning surges common in open fields, while individual input MCCBs let farmers isolate one inverter without shutting down the entire cluster.

5. Distributed 4-Pod Commercial Sites

Each 160–250 A MCCB serves as a local disconnect for a separate building wing or car-port pod; the common 630–1000 A output MCCB simplifies metering and grid connection, while the SPD guards the whole site against transient over-voltages.
